转自：https://tinychen.com/20241211-huawei-sp333-firmware-burn/
准备工作
固件我们直接去官网下载
# 官方的固件下载地址
https://network.nvidia.com/support/firmware/connectx4lxen/
# 刷固件需要用到的MFT工具
https://network.nvidia.com/products/adapter-software/firmware-tools/
# 网卡驱动
https://network.nvidia.com/products/adapter-software/ethernet/windows/winof-2/华子的网卡固件在官网没办法下载，但是在超聚合官网可以下载
https://support.xfusion.com/support/#/zh/software-basics/d4b7de78-c4c0-46db-bbbd-98926e13e2da关于SP333和SP380这两个型号的华子官网介绍
# SP333是2*10GE SFP+，向下兼容1GE速率（使用10GE SFP+光模块）。
https://support.huawei.com/enterprise/zh/doc/EDOC1100198574/672e0978
# SP380是2*25GE SFP28，向下兼容10GE速率（使用10G SFP+光模块）。
https://support.huawei.com/enterprise/zh/doc/EDOC1100056515/c20b2897根据之前对MCX4网卡的了解，这两个应该就是MCX4121A-XCAT和MCX4121A-ACAT的OEM版本
https://network.nvidia.com/files/doc-2020/pb-connectx-4-lx-en-card.pdf
这里需要提前说一下结论，这里刷固件的时候分别刷入了mellanox官方的MCX4121A-ACAT固件和华为的SP380固件：
刷入mellanox官方固件的时候，网卡只有一个网口能正常识别到模块，另一个网口在系统中能看到网卡，但是无法识别线缆（手头的AOC和DAC都不行，换另一个网口则都正常），并且正常识别的网卡在win11中没办法正常通过DHCP获取IP（其他系统暂时没测试）
刷入华为的SP380固件的时候，网卡信息能正常识别，两个网口各项功能看起来正常。建议还是刷入华为的固件比较稳妥。
windows 刷机
刷机命令参考如下
flint --no_fw_ctrl -allow_psid_change -d {设备号} -i {文件路径(注:这里最好为根目录下,如不为根目录注意目录名中不要含有中文)} burn这里我用powershell执行的命令参考如下：
PS C:\Users\Mr7th\Desktop\NIC-SP380-CX4Lx-FW-14.31.1014> flint --no_fw_ctrl -allow_psid_change -d mt4117_pciconf0 -i .\fw-ConnectX4Lx-rel-14_31_1014_H_SP380-FlexBoot-3.6.403_4117_14_24_13_RELEASE_X64_AARCH64_20210706_VPD.bin burn
Done.
Current FW version on flash: 14.32.1900
New FW version: 14.31.1014
Note: The new FW version is older than the current FW version on flash.
Do you want to continue ? (y/n) [n] : y
You are about to replace current PSID on flash - "MT_2420110034" with a different PSID - "HUA0000000023".
Note: It is highly recommended not to change the PSID.
Do you want to continue ? (y/n) [n] : y
Burning FW image without signatures - OK
Restoring signature - OK
-I- To load new FW run mlxfwreset or reboot machine.刷固件需要等待挺长一段时间的，要有耐心，刷完之后我们使用mlxfwmanager命令检查当前固件信息
PS C:\Users\Mr7th\Desktop\NIC-SP380-CX4Lx-FW-14.31.1014> mlxfwmanager
Querying Mellanox devices firmware ...
Device #1:
----------
Device Type: ConnectX4LX
Part Number: MCX4121A-ACA_Ax
Description: ConnectX-4 Lx EN network interface card; 25GbE dual-port SFP28; PCIe3.0 x8; ROHS R6
PSID: MT_2420110034
PCI Device Name: mt4117_pciconf0
Base MAC: N/A
Versions: Current Available
FW 14.31.1014 N/A
FW (Running) 14.32.1900 N/A
PXE 3.6.0502 N/A
UEFI 14.25.0017 N/A
Status: No matching image found看起来没问题，我们直接重启电脑，再看看网卡的信息
PS C:\Users\Mr7th> mlxfwmanager
Querying Mellanox devices firmware ...
Device #1:
----------
Device Type: ConnectX4LX
Part Number: Huawei_SP380_ConnectX4Lx_2P_25GbE_Ax
Description: Huawei SP380 2-port 25G Ethernet Adapter PCIE Gen3 x8
PSID: HUA0000000023
PCI Device Name: mt4117_pciconf0
Base MAC: N/A
Versions: Current Available
FW 14.31.1014 N/A
PXE 3.6.0403 N/A
UEFI 14.24.0013 N/A
Status: No matching image found
PS C:\Users\Mr7th> flint -d mt4117_pciconf0 q
Image type: FS3
FW Version: 14.31.1014
FW Release Date: 30.6.2021
Product Version: 14.31.1014
Rom Info: type=UEFI version=14.24.13 cpu=AMD64,AARCH64
type=PXE version=3.6.403 cpu=AMD64
Description: UID GuidsNumber
Base GUID: N/A 8
Base MAC: N/A 8
Image VSD: N/A
Device VSD: N/A
PSID: HUA0000000023
Security Attributes: N/A
按下win+R键，输入ncpa.cpl进去管理界面查看网卡信息
可以看到这两个网卡都正常协商到了10G速率（只有10G交换机），并且都通过DHCP的方式正常获取到了IP、DNS等信息

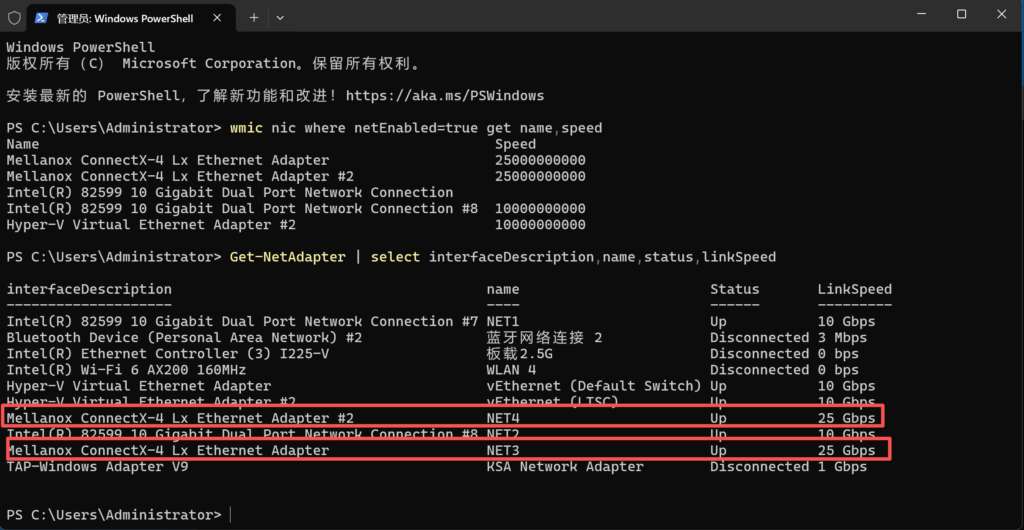

也可以通过下面这两个命令来查看网卡的速率信息
PS C:\Users\Mr7th> wmic nic where netEnabled=true get name,speed
Name Speed
Realtek Gaming 2.5GbE Family Controller #2 2500000000
Mellanox ConnectX-4 Lx Ethernet Adapter #5 10000000000
Mellanox ConnectX-4 Lx Ethernet Adapter #6 10000000000
PS C:\Users\Mr7th> Get-NetAdapter | select interfaceDescription,name,status,linkSpeed
interfaceDescription name Status LinkSpeed
-------------------- ---- ------ ---------
Mellanox ConnectX-4 Lx Ethernet Adapter #6 以太网 9 Up 10 Gbps
Mellanox ConnectX-4 Lx Ethernet Adapter #5 以太网 8 Up 10 Gbps
Intel(R) Wi-Fi 6E AX211 160MHz AX211 Disconnected 0 bps
Bluetooth Device (Personal Area Network) #3 蓝牙网络连接 3 Disconnected 3 Mbps
Realtek Gaming 2.5GbE Family Controller #2 Realtek Gaming 2.5GbE Up 2.5 Gbps进到unraid里面之后我们能看到速率有25G的选项，说明正常
root@tiny-unraid:~# ethtool eth0
Settings for eth0:
Supported ports: [ Backplane ]
Supported link modes: 1000baseKX/Full
10000baseKR/Full
25000baseCR/Full
25000baseKR/Full
25000baseSR/Full
Supported pause frame use: Symmetric
Supports auto-negotiation: Yes
Supported FEC modes: None RS BASER
Advertised link modes: 1000baseKX/Full
10000baseKR/Full
25000baseCR/Full
25000baseKR/Full
25000baseSR/Full
Advertised pause frame use: Symmetric
Advertised auto-negotiation: Yes
Advertised FEC modes: None
Speed: 10000Mb/s
Duplex: Full
Auto-negotiation: on
Port: Direct Attach Copper
PHYAD: 0
Transceiver: internal
Supports Wake-on: d
Wake-on: d
Link detected: yes
root@tiny-unraid:~# ethtool eth1
Settings for eth1:
Supported ports: [ Backplane ]
Supported link modes: 1000baseKX/Full
10000baseKR/Full
25000baseCR/Full
25000baseKR/Full
25000baseSR/Full
Supported pause frame use: Symmetric
Supports auto-negotiation: Yes
Supported FEC modes: None RS BASER
Advertised link modes: 1000baseKX/Full
10000baseKR/Full
25000baseCR/Full
25000baseKR/Full
25000baseSR/Full
Advertised pause frame use: Symmetric
Advertised auto-negotiation: Yes
Advertised FEC modes: None
Speed: 10000Mb/s
Duplex: Full
Auto-negotiation: on
Port: Direct Attach Copper
PHYAD: 0
Transceiver: internal
Supports Wake-on: d
Wake-on: d
Link detected: yes这里建议不要刷入mellanox官方的固件（虽然看起来网卡的速度正常，但是却无法正确识别到光模块和线缆），使用华为的官方固件即可，刷入的方法是一样的。
